Global Mining Products
V-RAD ELECTRIC TORQUE TOOLS
Global Mining Products Inc. (877) 576-2855

Pneumatic Torque Systems
VRAD TORQUE TOOL
[ view standard version ]

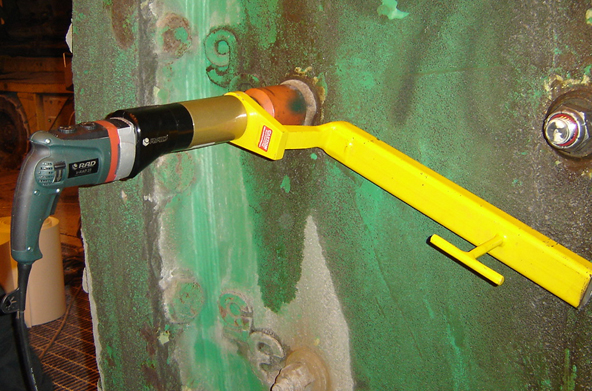

V-RAD-21 Electric Torque Wrench
The V-RAD 21 Electric Series Tool offers a smooth continuous flow of controlled torque from 700 - 2150 Nm which are adjustable through dial settings.
RAD Torque Tool
  • PATENTED planetary gear reduction drive system delivering one of the highest power-to-weight ratios of any pneumatic controlled bolting system

  • Smooth continuous flow of controlled torque eliminating destructive hammering

  • Lightweight ergonomic pistol grip design reducing operator strain and injury; resulting in increased productivity

  • Controlled torque – accuracy of +/-5%, and repeatability of +/-2%
V-RAD 21 Electric Series Torque Tool
Part No.
Drive Size
Torque
(Low- High)
RPM
Weight (kgs)
Noise Level
RAD-13585
1.0"
700-2150 Nm
6
6.8
80 db
All V-RAD 21 tools come fully calibrated complete with:
V-RAD Electric Torque Systems
  • V-RAD 21 Electric Torque Tool
  • Reaction Arm and Retention Ring
  • Operators Manual
  • Calibration Chart
  • Weatherproof Storage Case
Reaction Arms for V-RAD 21
Torque Tool Reaction Arm Torque Tool Reaction Arm Torque Tool Reaction Arm Torque Tool Reaction Arm Torque Tool Reaction Arm
Standard
Deep Socket
Double Ended
Blank
Double Ended Blank
RAD-10004
RAD-10007
RAD-10009
RAD-10005
RAD-10008
***Reaction arms not exactly as shown.

Global Mining Products offers a variety of accessories and custom reaction arms to ensure our tools are achieving 100% of their performance. Please contact us at 877-576-2855 if you have a specific or custom application. We can design asolution to meet your needs.
controlled torque eliminating destructive hammering
ELECTRIC TORQUE TOOL
